Hexagon Shape Rods

Model:            HR50B
Dimension:  1.8*0.8*1.6(M)
Power:            18.5KW
Capacity:        300-320kg/h
Weight:           900kg
Contact Us Email
the hexagon shape rods made by sawdust extruder mahcine
the raw materials could be wood sawdust,peanut shell,coconut shell,rice husks,corn cob,bean stalk or any other kinds of agricultural wastes,first of all, crushing them into sawdust,then feed them into the sawdust extruder machine to make rods.the hexagon shapes sticks could be used to make charcoal,and somes are used directly for cooking.

the hexagon shapes rods made by this sawdust extruder machine,and the machine is composed of the below parts:
the body machine

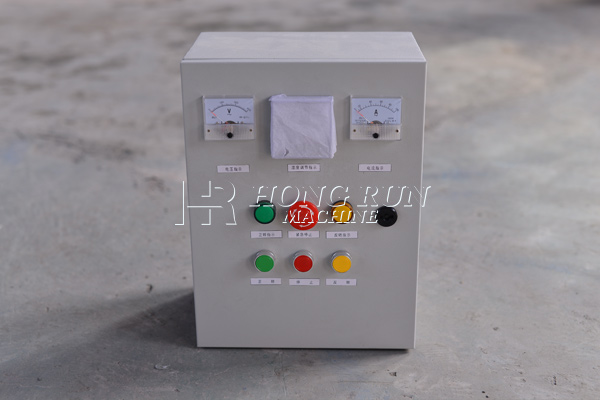

the electrical box
the motor
the screw pusher
the forming mould
the heating rings
the spare parts of the machine:screw pusher,forming mould,heating ring,while you used, but the screw pusher will not break, it wil just get weared,so after a while, you can just fix and clear it will be fine.
if you are interested in our machine, please contact me via:sales@cnhrmachinery.com
Tel/whatsapp:008613592505674

Welcome your inquiry! When you send us E-mail, please tell us the machine name you are interested and the raw material you have, so that we can recommend you with suitable machine and good price, thank you.


Machine Model      HR50A    HR50B       HR50C
Capacity 260-280kg/h 300-320kg/h 320-340kg/h
Power 15kw 18.5kw 22kw
Output Products Diameter 50mm 50mm 80mm
Machine Dimension 1.7*0.75*1.35(m) 1.8*0.8*1.6(m) 1.85*0.75*1.45(m)
Weight 850kg 900kg 1000kg
Raw Materials Sawdust, wood chips, biomass, etc
Briquette Shape Round, square, hexagonal sticks with holes inside
