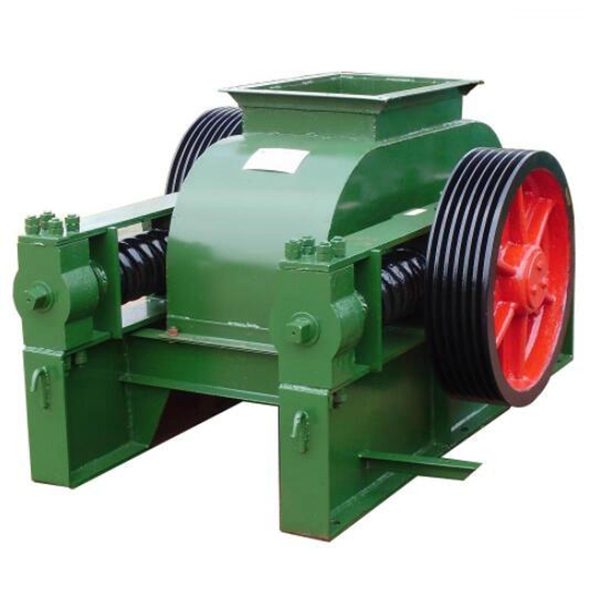

Introduction of double roller crusher:
Double roller crusher is a roll type crushing machine with simple structure, less over crushing happens and the tooth shape, size, are arranged on roller can change along with the materials. Double roller crusher can be employed to crush hard and soft ore for coarse and fine crushing.
Specification of double roller crusher:
Feed particle size:≤150 mm
Discharge particle size: 2-50mm
Production capacity: 5-120 t/h
Application of double roller crusher:
Double roller crusher can be used to process pyrite ore (diameter: 20~30mm) after crushing by jaw crusher in sulfuric acid factory, and the roll crusher is able to break the ore under 5mm in diameter, to meet the requirement of the fluidized bed.
Features of double roller crusher:
Double roller crusher is a roll type crushing machine with simple structure, reliable working, and low operating cost. The tooth shape, size, are arranged on roller can change along with the materials, and the discharging granularity of double roller crusher can be adjusted.
Structure features of double roller crusher:

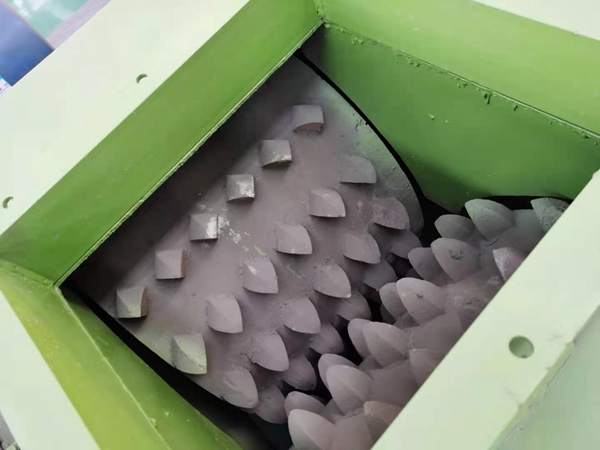

Double Roller Crusher is fixed with two high-strength wear-resistant alloy rolls. Their relative rotation generates high extrusion pressure which crushes the material. The material enters into the space between the two rolls, suffered both extrusion and shear force.In the crowd rolling, cutting and grinding, it is crushed into the required size and then sent by the transport equipment.
The spacing between rollers can be adjusted to meet the different needs of the desired size.
When roller teeth are worn to a certain level, the gap between two rollers can be adjusted to ensure the required size. It’s easy to replace the roller covering.
By applying the special structural frame, the bearing support of the movable roller can move on the sliding way horizontally, and connects with the hydraulic cylinder with the accumulator. When the uncrushed foreign materials enter into the machine, they can be discharged by the retreating of the bearing support, so the machine can be protected from damage.
The flexible resin screen can prevent the moisture content viscous materials from adhering to the internal cavity.
The mud-scraping device can prevent materials from adhering to the roller, so the teeth surface can be more clean and the proper shearing and pressing be maintained.
Four main shafts can be lubricated separately or together. The bearing support has the grease-discharging hole to discharge the waste grease at any time. It’s easy for maintenance.
Model | Feeding size (mm) | Output size(mm) | Capacity(t/h) | Motor power(kw) | Weight(t) | Overall Dimension(mm) |
---|---|---|---|---|---|---|
2PG400*250 | <35 | <2-8 | 2-10 | 2*5.5 | 1.5 | 2110*870*810 |
2PG610*400 | <65 | <2-20 | 5-20 | 2*15 | 3.9 | 3510*1420*1030 |
2PG750*500 | <75 | <2-25 | 10-40 | 2*18.5 | 9.5 | 4210*1630*1260 |
2PG800*600 | <80 | <2-25 | 12-45 | 2*22 | 10.8 | 4505-1780*1320 |
2PG1000*700 | <100 | <3-30 | 20-65 | 2*30 | 14.9 | 5310*2175*1595 |
2PG1200*800 | <120 | <3-35 | 35-80 | 2*37 | 25.5 | 6290*2270*1870 |
2PG1500*800 | <130 | <3-45 | 50-120 | 2*75 | 33.7 | 7460*2410*2290 |
2PG1600*1000 | <150 | <3-50 | 60-140 | 2*90 | 42 | 8220*2680*2475 |
