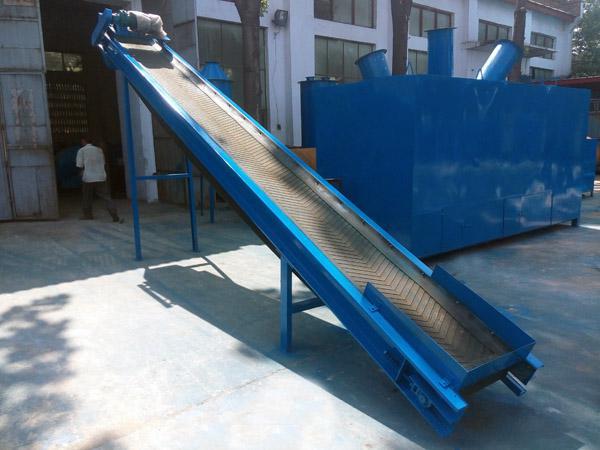

Belt Conveyor
Description of Belt Conveyor:
Hongrun belt conveyor is a kind of machinery that can transfer the material continuously by friction drive. According to different transport requirements, the transport system can be single belt conveyor or consist of several conveyors or be combined with other conveying equipments.
Conveyor can be horizontal, tilt and vertical transmission, but also the composition of space transmission lines, transmission lines are generally fixed.
Features of Belt Conveyor:
Belt conveyor has the features of: simple structure, easy—installed big transport capacity. Conveyor not only has a big transport capacity, especially for long distance, but also can complete a number of process operations during the transportation process.
Belt conveyor is widely used for conveying bulk whose density is less than 1.67 t /m3 .The temperature of the material to be sent should be less than 60 °C.
This product can not transport acidic, alkaline, oils, materials, installation of sub-standard, tilt, fixed, mobile and other means.
Belt width(mm) | Belt | length(m)/ | Power(kw) | Belt Speed(m/s) | Capacity (t/h) |
---|---|---|---|---|---|
400 | ≤12/1.5 | 12-20/2.2-4 | 20-25/3.5-7.5 | 1.3-1.6 | 40-80 |
500 | ≤12/3 | 12-20/4-5.5 | 20-30/5.5-7.5 | 1.3-1.6 | 80-190 |
600 | ≤ 12/4 | 12-20/5.5 | 20-30/7.5-11 | 1.3-1.6 | 131-323 |
800 | ≤6/4 | 6-15/5.5 | 15-30/7.5-15 | 1.3-1.6 | 278-546 |
1000 | ≤10/5.5 | 10-20/7.5-11 | 20-40/11-12 | 1.3-2.0 |
453-853 |
